Type R

The Alfa Laval Access Tank Cover - Rectangular Type R is a stainless steel manway cover that provides a secure fit for openings on the sides of washing machines, static tanks or vessels. It offers a quick, easy and convenient means of entry and egress to tank interiors. It also provides a closeable means of access, situated above or below the liquid level, to the interior of the vessel.

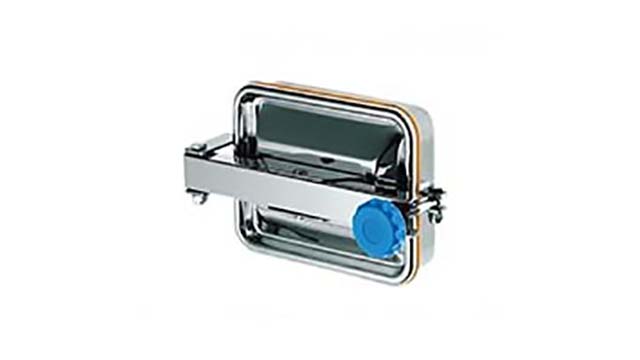

Type R tank cover 640X360

High-quality openings that provide quick, easy and convenient entry and egress to tank interiors

  • Easy access
  • Hygienic option

The Access Tank Cover - Rectangular Type R is designed for use on sides of tanks or vessels in hygienic applications across the wine, juice, beverage and many other industries. These rectangular tank covers are suitable for use in bottling and washing machines and industries, such as the wine and juice industries, where the occasional removal of product from the bottom of a tank is required.

Covering all tank needs

Alfa Laval offers a complete range of high-quality manhole covers to meet virtually every requirement. More than 50 different types of oval, circular and rectangular covers are available. These securely fit the openings of pressure, non-pressure and low-pressure tanks, both above and below the liquid level. A wide variety of sizes with frame heights between 60 mm and 200 mm is available. Tank covers can be fitted with different sight glasses and relief valves.

Hygienic design

For hygienic processes, there are two models from which to choose: the oval-shaped Alfa Laval LKD Tank cover and the circular Alfa Laval LKDC Tank cover in standard and pressure models for both above and below the liquid level. These comply with 3-A Sanitary Standards and the U.S. Food and Drug Administration (FDA) Declaration of Conformity.

Swing flexibility

Tank covers can be supplied with an inwards opening swing for inspection purposes as well as outwards and side-swing openings when physical entry is required. For washing and bottling machines, Alfa Laval has small rectangular and circular covers for use as hand doors.

Materials, surfaces and standards

Alfa Laval Tank covers are available in AISI 304 or AISI 316L stainless steel with EPDM, NBR, FPM or Q (silicone) seal materials. Surface finishes include electro-polished, brushed and acid pickled, and vary from Ra 0.4 to Ra 0.3 to meet the exceptionally high quality requirements of hygienic processes.

Alfa Laval Tank covers meet the requirements of the European Pressure Equipment Directive (EC unit verification), Module G and the American Society of Mechanical Engineers (ASME). Upon request, 3.1 Material Certification in accordance with EN 10204 can be supplied.

For more information, please refer to documentation and the Tank cover selection guide.

产品优势

  • 满足所有类型储罐需求
  • 卫生级设计
  • 灵活开启

运行原理

构造

阿法拉伐储罐盖的构造因型号而异。

为了满足检查和物理进入储罐的需求,储罐盖向内、向外或侧向摆动具体取决于型号。为满足不同的应用要求,罐盖可位于液位上方和下方。

.

油箱盖选择指南

阿法拉伐提供 50 多种不同类型的高品质储罐盖,可快速、轻松、方便地进入储罐内部。 为您的油箱找到合适的油箱盖并不难。 本选择指南中解释了主要区别。

Tank Cover Selection Guide 640x360

一部分油罐盖设备

阿法拉伐提供种类齐全的罐设备,适用于乳制品、食品、饮料、家庭护理、个人护理、生物技术和制药领域的卫生应用。

对于更广泛的储罐设备范围,我们探索不同的产品类别:旋转喷头、旋转喷头、储罐配件和储罐盖。

.
