HLSD-2

Alfa Laval tank covers are high-quality openings that provide quick, easy and convenient entry and egress to tank interiors in the dairy, food and beverage, and biopharm industries. We offer more than 50 different types of oval, circular and rectangular covers, providing a quick, easy and convenient entry and access to tank interiors. Available with a variety of surface finishes and seal materials, these securely fit the openings of high/low or non pressure tanks.

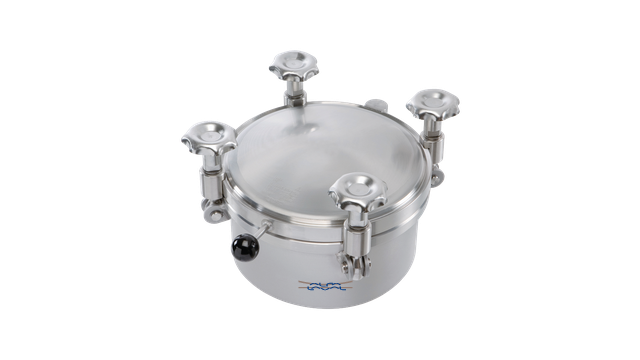

hlsd 2 tank cover left side 640x360

Covering all tank needs

Alfa Laval offers a complete range of high-quality manhole covers to meet virtually every requirement. More than 50 different types of oval, circular and rectangular covers are available. These securely fit the openings of pressure, non-pressure and low-pressure tanks, both above and below the liquid level. A wide variety of sizes with frame heights between 60 mm and 200 mm is available. Tank covers can be fitted with different sight glasses and relief valves.

Hygienic design

For hygienic processes, there are two models from which to choose: the oval-shaped Alfa Laval LKD Tank cover and the circular Alfa Laval LKDC Tank cover in standard and pressure models for both above and below the liquid level. These comply with 3-A Sanitary Standards and the U.S. Food and Drug Administration (FDA) Declaration of Conformity.

Swing flexibility

Tank covers can be supplied with an inwards opening swing for inspection purposes as well as outwards and side-swing openings when physical entry is required. For washing and bottling machines, Alfa Laval has small rectangular and circular covers for use as hand doors.

Materials, surfaces and standards

Alfa Laval Tank covers are available in AISI 304 or AISI 316L stainless steel with EPDM, NBR, FPM or Q (silicone) seal materials. Surface finishes include electro-polished, brushed and acid pickled, and vary from Ra 0.4 to Ra 0.3 to meet the exceptionally high quality requirements of hygienic processes.

Alfa Laval Tank covers meet the requirements of the European Pressure Equipment Directive (EC unit verification), Module G and the American Society of Mechanical Engineers (ASME). Upon request, 3.1 Material Certification in accordance with EN 10204 can be supplied.

For more information, please refer to documentation and the Tank cover selection guide (.pdf 1 250 KB).

产品优势

  • 满足所有类型储罐需求
  • 卫生级设计
  • 灵活开启

产品目录

“近在咫尺”的最新在线版本

查找阿法拉伐产品

运行原理

构造

阿法拉伐储罐盖的构造因型号而异。

为了满足检查和物理进入储罐的需求,储罐盖向内、向外或侧向摆动具体取决于型号。为满足不同的应用要求,罐盖可位于液位上方和下方。

圆形 C 型
LKD 静态
椭圆 O 型 静态
矩形 R 型 静态

为帮助您匹配正确的阿法拉伐储罐盖,请参阅文档和选择指南 (.pdf 1 250 KB)。
