LabStak M10

The LabStak® M10 is the smallest and most compact of the Alfa Laval units for cross-flow membrane filtration. This versatile unit is an ideal tool for educational purposes and for research and development work. The Alfa Laval LabStak® M10 can be used with the complete range of Alfa Laval flat sheet membranes available for ultrafiltration and microfiltration.

labstak m10 left side 640x360

Handy and flexible

With a membrane area of only 336 cm² the Alfa Laval LabStak® M10 is the smallest unit in the range of  laboratory equipment offered by Alfa Laval. The design is simple, but the results obtained are comprehensive and reliable.

The Alfa Laval LabStak® M10 is an extremely reliable, yet easy to use, unit for process development and optimization, scaling-up as well as training purposes. The flexibility to install and test two membranes simultaneously makes it an efficient tool for initial membrane selection.

Alfa Laval LabUnit M10

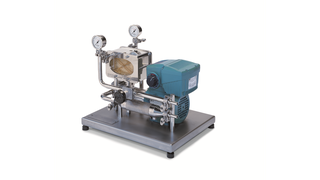

Alfa Laval LabUnit M10_320x180pxThe Alfa Laval LabUnit M10 is a fully integrated system comprising an Alfa Laval LabStak® M10 unit complete with necessary pump, valve, heat exchanger and instrumentation.

Benefits

  • membrane area of only 336 cm²
  • easy exchange of membranes
  • transparent plate for observation of cross-flow
  • simultaneous test of two different membrane types
  • high operating temperature (80°C)
  • small test media volume (1-3 litres)
  • hold-up volume only 57 ml
  • flow pattern similar to that of larger modules
  • all components in compliance with FDA and ECC regulations, allowing use within food and pharmaceutical processing applications

运行原理

进料流/渗余物将在称为 LabStakTM M10 模块的板式装置中流过膜表面的开放通道。

该膜由带有许多槽的中空板支撑,这些槽允许通过渗出物收集管从装置收集和去除渗出物。

在锁环或条带的帮助下,板式装置使用膜本身来密封进料/渗余物并防止与渗出物混合。 这还将防止板堆本身泄漏。

LabUnit M10 flow diagram
