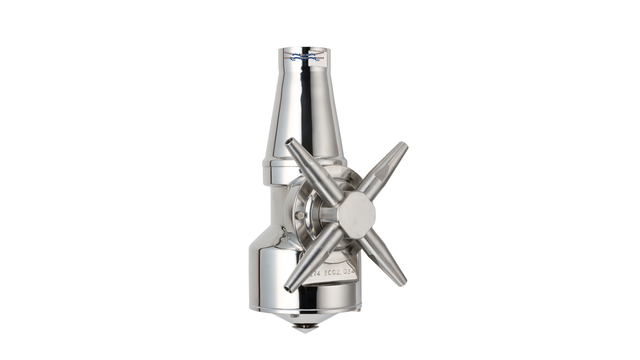

T/TZ

阿法拉伐T / TZ旋转喷嘴罐清洗系列具备出色的清洗能力，以及更好的成品质量、更高的总产量和更低的运营成本。设计用于食品、乳制品和饮料等卫生应用以及海洋环境。可提供各种尺寸和不同配置，涵盖任何储罐尺寸。

最经济的清洁效果

为了获得最佳的清洁效果，Toftejorg旋转喷淋头使用了优化的高冲击力喷嘴，以提供最大的覆盖范围。喷流到达水箱内表面，以确保实现最有效的在线清洁（CIP）解决方案。喷射压力或冲击力可有效去除残留物，以提供间歇生产所需的卫生条件。所有Toftejorg旋转喷淋头装置的内部和外部均具有自排水和自清洁功能，符合“良好生产规范”。阿法拉伐Rotacheck系统会验证每个清洁周期，以确保符合当今严格的卫生标准。

经济和环保的正确选择

与静态喷淋球相比，Toftejorg自动旋转喷头使用更少的水，更少的能源和更少的清洁剂，不仅有效清洁了水箱，还有助于减少水和化学药品的消耗，并且可以提高贵公司的环保形象。

性能可靠，使用寿命长

旋转喷射头技术是经过验证的技术，可通过可靠和重复的清洗来提高清洁效率。Toftejorg旋转喷头在小于0.3 bar的压力下旋转，实现最小的内部压力损失。但是，为了保证最佳和可靠的清洁性能，建议工作压力在5至8 bar之间。

使用集中喷嘴和360°覆盖范围进行清洁。在最短的时间内产生最大的覆盖与最低液体消耗。

高产品完全性

为确保产品完整性，所有Toftejorg旋转喷头装置均由安全且无反应性的卫生材料制成。所有不锈钢制成材料均可根据EC No.1935 / 2004进行全程追溯。所有使用的非金属零件均符合FDA要求21CFR§174；用于Biopharm应用的旋转喷射头的非金属零件均已通过USP VI类规定的认证。根据要求，可以为符合EN10204标准的储罐清洁设备提供3.1证书。

海洋应用

T-82用于海上平台、石化和化学加工工业，采用油脂润滑，设计用于在恶劣环境下罐清洗，例如：它广泛用于清洁介质中有固体颗粒的供给船和石油钻机上的泥罐中。也广泛用于驳船和成品油轮。

TZ-82和TZ-75被广泛用作油罐车、成品罐车和化学品罐车上的便携式罐车清洗设备。

产品优势

清洁速度提高60％=更长的生产时间
高冲击清洁度，可360度重复清洁
在线清洗控制通过验证
节省多达70％的清洁成本
通过可靠且可预测的清洁性能实现卫生安全

T/TZ系列:

T-82
TZ-66
TZ-67
TZ-74
TZ-75
TZ-750
TZ-79
TZ-82
TZ-89
TZ-68
TZ-74 Brew Kettle

可持续发展 - Rotacheck

阿法拉伐 Rotacheck 验证了旋转喷头清洁过程，减少耗水量和产品损失，可安心使用。

Learn more about Rotacheck

运行原理

动态储罐清洗机

来自四喷嘴旋转喷头的高冲击力射流经过预编程，以连续密集的方式覆盖了油箱的内部。使用少量的水、酸或苛性碱，可以提供强大的机械冲击力。更快的油罐清洁周期还可以减少能耗。

清洁液的流动使喷嘴围绕垂直和水平轴进行齿轮旋转。在第一个循环中，喷嘴现在罐表面大致喷涂。随后的循环会反复覆盖的越来越密，直到八个循环后流程完整覆盖整个内表面。这一切都是自动进行，并为用户提供了一条有效的途径来实时确保储罐清洗质量，以及提供所有必要的文件。

Toftejorg旋转式喷头非常适合清洁处理、存储和运输罐以及过程、卫生、制药等行业中使用的船只。

Thorough cost-effective cleaning

To achieve the best possible cleaning results, Toftejorg Rotary jet heads use an optimized high-impact jet pattern to provide the highest possible coverage. Cleaning patterns reach the inner tank surfaces to ensure the most effective cleaning in place (CIP) solution possible. The jet pressure, or force of impact, efficiently removes residue to provide the hygienic conditions required for batch production. Self-draining and self-cleaning, inside and out, all Toftejorg Rotary jet heads devices comply with Good Manufacturing Practice. The Alfa Laval Rotacheck system verifies every cleaning cycle to ensure compliance with today’s strict hygiene standards.

An economic and environmentally correct choice

The Toftejorg Rotary jet heads effectively clean tanks using less water, less energy and less cleaning agents than Static spray ball´s. This not only helps reduce consumption of water and chemicals but boosts your company’s to environmental profile.

Performance reliability and long service life

Rotary jet head technology is proven technology that boosts cleaning efficiency by providing reliable and repeatable cleaning performance. Designed to provide minimal internal pressure loss, Toftejorg Rotary jet heads rotate at pressures less than 0.3 bar; however, the recommended operating pressure is between 5 and 8 bar, where the optimal and reliable cleaning performance is achieved.

Cleans with concentrated jets and 360° coverage. Highest impact and lowest liquid consumption in shortest time.

High product integrity

To ensure product integrity, all Toftejorg Rotary jet head devices are made of safe and non-reactive hygienic materials. All materials made of stainless steel are fully traceable in accordance EC No. 1935/2004. All non-metallic parts used comply with FDA requirements 21CFR § 174; non-metallic parts of rotary jet heads used for the Biopharm applications are certified in accordance with USP Class VI regulations. Upon request, 3.1 certificates can be supplied for those tank cleaning devices that meet the EN10204 standard.

Marine application

Used in the offshore industry and in petrochemicals and chemical processing industries, the T-82 is grease lubricated and designed to clean tanks in a rough environment, e.g. it is widely used in mud tanks on supply vessels and oil rigs where solid particles are in the cleaning media. It is also widely used on barges and product tankers.

The TZ-82 and TZ-75 machines are widely used as portable tank cleaning machines on oil-, product- and chemical tankers.
