Unique Flexbody

阿法拉伐Unique Flexbody是一种灵活的仪表承接器,适用于卫生流体加工管路,可轻松安装到任何管道系统中,并增强监测和控制。 可将最多两个控制或测量仪器或目视镜放入每个承接器中。其简单、无死角设计使 Unique Flexbody 易于使用、维护和清洁。

Unique Flexbody


  • 改善卫生流体生产线的控制、测量和目视检查
  • 提高产能和收益
  • 由于易于清洁,确保工艺卫生,没有死区、圆顶、圆顶或氧化
  • 两种连接尺寸适合所有仪器和目视镜
  • 易于拆卸、清洁、校准和维护仪器或目视镜
阿法拉伐 Unique Flexbody 仪表承接器可提高卫生流体加工产量并降低成本。Unique Flexbody 非常适合在啤酒、饮料、乳制品和食品行业使用,可轻松监控压力、温度和电导率等关键参数。只需安装在任何管道系统中,并使用方便的夹具连接来定位控制和测量仪器或目视镜。


通过使用仪器、目视镜和Unique Flexbody 承接器,可优化过程监控和控制。有 EN 10357-A、ISO 2037 和 ASME BPE 不同标准的选择,其内部表面光洁度小于 0.8 μm。最多两个仪器或目视镜,使用夹环可轻松安装。

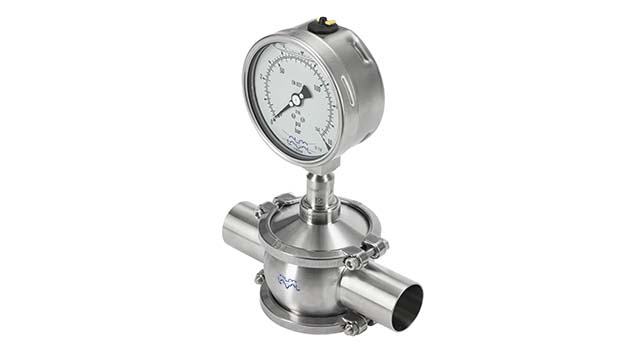

Unique Flexbody w Pressure Gauge

Two-sizes-fits-all in-line housing

Compact and modular, Unique Flexbody is simplicity at its best. Connections are independent of pipe diameters and process variables; only two connection sizes fit all instrumentation and sight glasses. Instrumentation is interchangeable and easy to remove for calibration or replacement without welding.

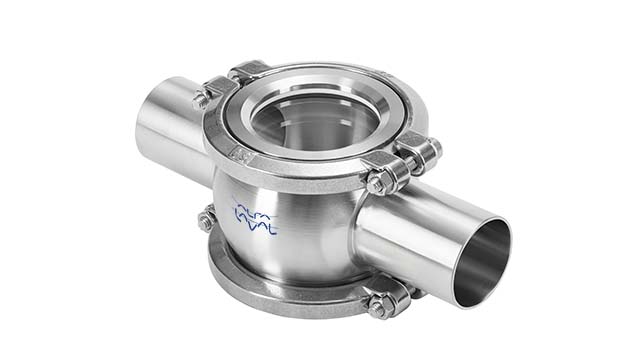

Unique Flexbody N and F type

Hygienic, easy-to-clean instrument housing

With the Unique Flexbody in-line housing, you get reliable, hygienic process connections that are fully drainable and cleanable with Cleaning-in-Place (CIP) and Sterilization-in-Place (SIP) processes. No dismantling is required. What’s more, instrumentation access creates a perfect seal, completely free of gaps or air pockets, minimizing microbial contamination risks.




The Unique Flexbody consists of hygienic stainless steel in-line housing, an o-ring and either a blind cap or two sight glasses. It can be welded into any piping system with various pipe diameters.

Operating principle

The Unique Flexbody has two openings to accommodate two instruments or sight glasses at the same time. When one or both of the openings is not being used for measurement or visual monitoring, hygienic blind caps can seal the process connections.


Choose the right in-line instrumentation and/or sight glass body from these standard sizes.

EN 10357-A

  • Process connection F: DN 25,
  • Process connection N: DN40, 50, 65, 80, 100, 125, 150

ISO 2037

  • Process connection: F: ISO 25,
  • Process connection: N: ISO 38, 51, 63,5, 76,1, 101,6


  • Process connection: F: 1”
  • Process connection: N: 1½”, 2”, 2½”, 3”, 4”


  • Housing: 1.4404 / AISI316L
  • Elastomer: Standard EPDM, FPM optional
  • Internal surface finish: Ra < 0.8 µm
  • Sight glass: Borosilicate glass

Part of a broad instrumentation range

Alfa Laval offers a comprehensive range of instrumentation including temperature instruments, pressure instruments, level instruments, and sight glasses. These are intended for use in hygienic applications in the dairy, foodbeverage, home carepersonal care, biotechnology and pharmaceutical industries.
